Hardware Specifications

Vendor/Brand	D-LINK
Model	DPN-100 Rev C1
ODM	CIG
ODM Product Code	G-97S
Chipset	Realtek RTL9601CI
Flash	16MB
RAM	32MB
System	Linux (Luna SDK 1.9.0)
HSGMII	✅
Optics	SC/APC
IP address	192.168.100.1
Web Gui
SSH
Telnet	✅ user root, password admin (only on R4.2.104.033e)
Serial
Form Factor	miniONT SFP

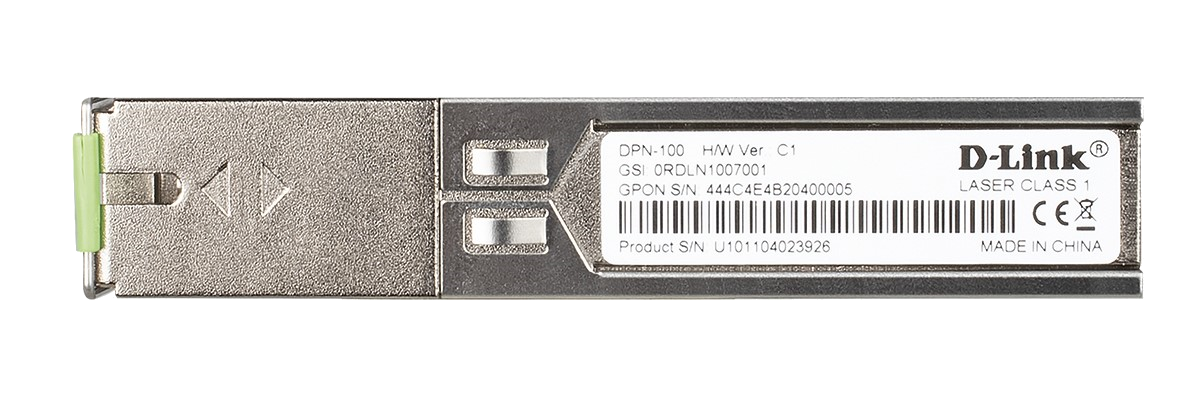

DPN-100 Rev C1

List of software versions

• R4.2.104.033e (Wind - has telnet enabled)
• R4.2.104.039 (Wind - no telnet access)

List of partitions

dev	size	erasesize	name
mtd0	00080000	00010000	"Boot"
mtd1	00180000	00010000	"Config"
mtd2	00700000	00010000	"ImageA"
mtd3	00700000	00010000	"ImageB"

GPON ONU status

Getting the operational status of the ONU

#ONT>traffic
#ONT/system>pon
#ONT/system/pon>show link

 ----------------- LINK STATE -----------------
 Link State:              ACTIVE
 Operation State Machine: OPERATION (O5)
 ----------------- STATE  END -----------------

Querying a particular OMCI ME

#ONT>system
#ONT/system>mib
#ONT/system/mib>show 256
Table Ontg, Ont-g, total 1 instances

EntityID                  = 0x0000
VID                       = "ALCL"
Version                   = AA BB CC DD EE FF 11 22 33 44 55 66 00 00
SerialNum                 = AA BB CC DD EE FF 11 22
TraffMgtOpt               = 0
AtmCCOpt                  = 0
BatteryBack               = 1
AdminState                = 0
OpState                   = 0
OnuSurvivalTime           = 0
Loid                      = ""
Password                  = ""
AuthState                 = 0
OntState                  = 1

GPON/OMCI settings

Committing changes to the OMCI MIB tables for GPON operation

#ONT>system
#ONT/system>mib
#ONT/system/mib>reset

Getting/Setting ONU GPON Serial Number

#ONT>system
#ONT/system>misc
#ONT/system/misc>eqsn set "ALCL00000001"
---ATECMDRESULT--- OK
#ONT/system/misc>eqsn get
eqsn: ALCL00000001
---ATECMDRESULT--- OK

Getting/Setting PLOAM

#ONT>system
#ONT/system>misc
#ONT/system/misc>pon_passwd set "123456789"
---ATECMDRESULT--- OK
#ONT/system/misc>pon_passwd get
pon_passwd: 31323334353637383900
---ATECMDRESULT--- OK
#ONT/system/misc>register_id set "123456789"
---ATECMDRESULT--- OK
#ONT/system/misc>register_id get
pon_passwd: 31323334353637383900
---ATECMDRESULT--- OK

Setting OMCI software version (ME 7)

The following command must be typed into the standard linux shell:

# echo SWVER=3FE49337AOCK80 > /mnt/rwdir/sys.cfg

Getting/Setting OMCI hardware version (ME 256)

#ONT>system
#ONT/system>misc
#ONT/system/misc>eqvid get
eqvid: 3FE45458ABAA06
hex_eqvid: 0x3346453435343538414241413036
---ATECMDRESULT--- OK
#ONT/system/misc>eqvid set "YOUR_CUSTOM_VID"

Getting/Setting OMCI vendor ID (ME 256)

#ONT>system
#ONT/system>misc
#ONT/system/misc>vendor get
vendor: ALCL
---ATECMDRESULT--- OK
#ONT/system/misc>vendor set "ALCL"
---ATECMDRESULT--- OK

Getting/Setting OMCI equipment ID (ME 257)

#ONT>system
#ONT/system>misc
#ONT/system/misc>eqid set "YOUR_CUSTOM_EQUID"
---ATECMDRESULT--- OK
#ONT/system/misc>eqid get
eqid: YOUR_CUSTOM_EQUID
hex_eqid: 0x594F55525F435553544F4D5F4551554944000000000000
---ATECMDRESULT--- OK

Getting/Setting MAC address

mac1 = Lower MAC ID (printed on label)

mac2 = Upper MAC ID (usually = mac1+3)

#ONT>system
#ONT/system>misc
#ONT/system/misc>mac1 get
mac1: aa.bb.12.34.56.78
---ATECMDRESULT--- OK
#ONT/system/misc>mac2 get
mac2: aa.bb.12.34.56.7b
---ATECMDRESULT--- OK
#ONT/system/misc>mac1 set 12:34:56:11:22:33
---ATECMDRESULT--- OK
#ONT/system/misc>mac2 set 12:34:56:11:22:44
---ATECMDRESULT--- OK

Advanced settings

Setting management IP

#ONT>system
#ONT/system>misc
#ONT/system/misc>admin_ip get
admin_ip: 192.168.100.1
---ATECMDRESULT--- OK
#ONT/system/misc>admin_ip set 192.168.1.1
#ONT/system/misc>admin_mask get
admin_mask: 255.255.255.0
---ATECMDRESULT--- OK
#ONT/system/misc>admin_mask set 255.255.255.0

(Re-)enable webinterface

#ONT>system
#ONT/system>manu
#ONT/system/manu>internal_ip_en

Miscellaneous Links

• DLINK DPN-100 Ver:C1 uses RTL9601CI
